Transportation by water
Environmentally friendly transport logistics by barge
Besides road and rail transport, Felbermayr’s complete special transport portfolio also includes water transport. We thus make our tri-modal portfolio in the field of special and heavy haulage complete.
Utilising a connection between water transport and the powerful special equipment of our road and rail transport sections, we implement efficient ro-ro (roll-on, roll-off) solutions with exceedingly high transport weights and dimensions. The loading and unloading points are thereby not necessarily limited to the existing port facilities. Thanks to our special push and transport boats and the use of mobile ro-ro ramps, unloading can take place at spots on the river located closer to the future installation site. With the heavy load vessel "Horst Felix" we have a self-propelled barge that is ideally adapted to the requirements of tri-modal transport. It has trim tanks and anchor piles and around 500 square metres of large working deck area.
The “HORST FELIX” is an ideal addition to the Felbermayr fleet and, as a heavy-duty vessel with anchor piles, is ideally suited to the requirements of trimodal transport. It is therefore suitable for a wide range of applications in ship transport and hydraulic engineering. The “HORST FELIX” is a multifunctional ship built for Europe's waterways.
specifications
Load capacity: 1,414 t
Length x width: 85.80 m x 10.40 m
Power: 1,000 kW
Draft: min. 12 dm; max. 27 dm
Working cover: 60 x 9 m; 15 t per m2, 30 t per m2 (crane)
Ballasting: up to 1,200 t (with trim tanks)
Anchor piles: up to 14 m
But, we service much more than just the inland waterways of Europe. Using high-sea cargo vessels, heavy goods are transported to destinations in countries further away in cooperation with international shipping companies. Once they arrive there, Felbermayr’s entire special transport logistics are at hand and transfer to road or rail can begin.
Operation reports and references

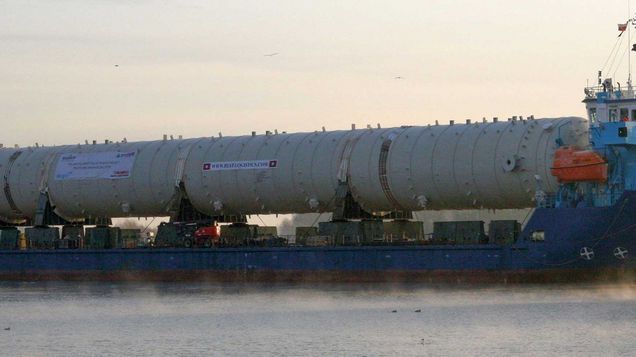

Final stages on the waterway
A gigantic polypropylene plant is currently being built in Police. It is currently one of the largest investment projects in Poland. Best Logistics, a Felbermayr subsidiary, has taken on the contract…
Showdown of heavy lift logistics for the petrochemical industry
Felbermayr and its subsidiary companies Bau-Trans and Haeger & Schmidt recently put the combined force of heavy lift logistics into effect for Hungary's largest corporate group. This involved the…
Trimodal transport for Polish power station
In order to meet the ever growing demand for electricity in Poland, a new combined cycle gas turbine power plant is being built for PKN Orlen northwest of Warsaw. Felbermayr transport and lifting…
